Kennametal

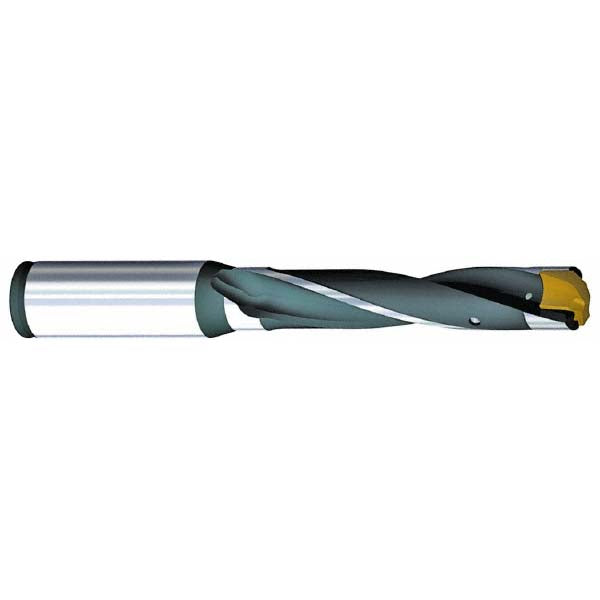

Indexable Drilling - Kennametal 1606881
MFR# 1606881Series KSEM
$490.32List $535.69
Save 8%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 1606881 indexable drilling. Series KSEM.
Specifications
Compatible insert styleKSEM0641
Coolant hole diameter0.1378
Coolant throughYes
Drill depth by diameter ratio5xD
Flute length4.3402
Insert seat size1
Maximum drill depth3.5400
Maximum drill depth range3.5000 to 4.5000
Maximum drill diameter0.6606
Minimum drill diameter0.6409
Overall length6.5
Shank diameter (mm)19.05
Shank length2.0000
Shank typeStraight-Cylindrical
