Kennametal

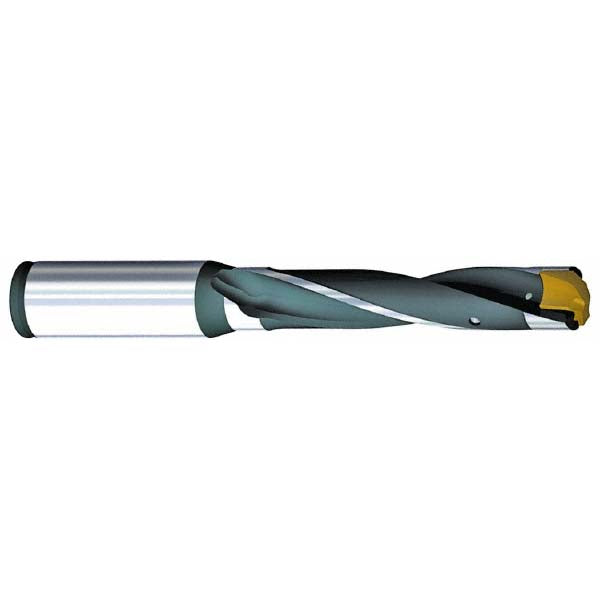

Indexable Drilling - Kennametal 1606885
MFR# 1606885Series KSEM
$532.63List $581.91
Save 8%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 1606885 indexable drilling. Series KSEM.
Specifications
Compatible insert styleKSEM0766
Coolant hole diameter0.1378
Coolant throughYes
Drill depth by diameter ratio5xD
Flute length5.0902
Insert seat size2
Maximum drill depth3.9400
Maximum drill depth range3.5000 to 4.5000
Maximum drill diameter0.7858
Minimum drill diameter0.7661
Overall length8.25
Shank diameter (mm)25.40
Shank length3.0000
Shank typeStraight-Cylindrical
