Kennametal

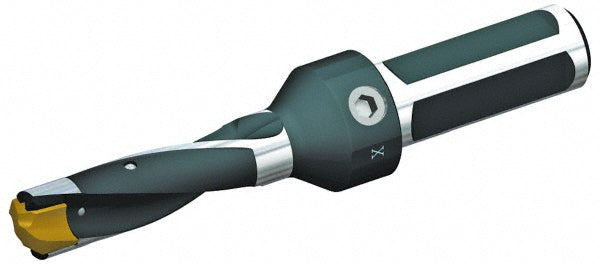

Indexable Drilling - Kennametal 1613627
MFR# 1613627Series KSEM
$455.46List $497.61
Save 8%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 1613627 indexable drilling. Series KSEM.
Specifications
Body side coolant hole thread size in1/8-27
Compatible insert styleKSEM0641
Coolant hole thread typeNPT
Coolant throughYes
Drill depth by diameter ratio3xD
Flute length2.6799
Insert seat size1
Maximum drill depth2.0500
Maximum drill depth range1.5000 to 2.5000
Maximum drill diameter0.6606
Minimum drill diameter0.6409
Overall length5.6252
Shank diameter (mm)19.05
Shank end coolant hole thread size in1/8-27
Shank length2.0000
Shank typeWeldon Flat
