Kennametal

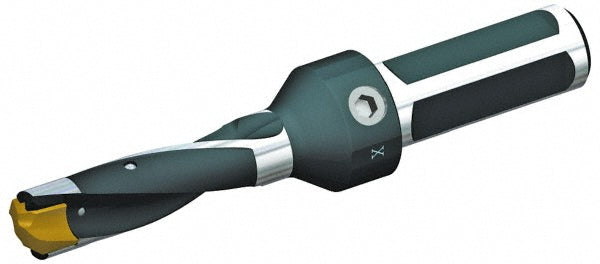

Indexable Drilling - Kennametal 1616107
MFR# 1616107Series KSEM
$856.04List $935.26
Save 8%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 1616107 indexable drilling. Series KSEM.
Specifications
Body side coolant hole thread size in1/8-27
Compatible insert styleKSEM1422
Coolant hole thread typeNPT
Coolant throughYes
Drill depth by diameter ratio3xD
Flute length6.7701
Insert seat size10
Maximum drill depth4.3700
Maximum drill depth range3.5000 to 4.5000
Maximum drill diameter (mm)37.12
Minimum drill diameter1.4220
Overall length (mm)285.75
Shank diameter (mm)38.10
Shank end coolant hole thread size in1/4-18
Shank length3.7500
Shank typeWeldon Flat
