Kennametal

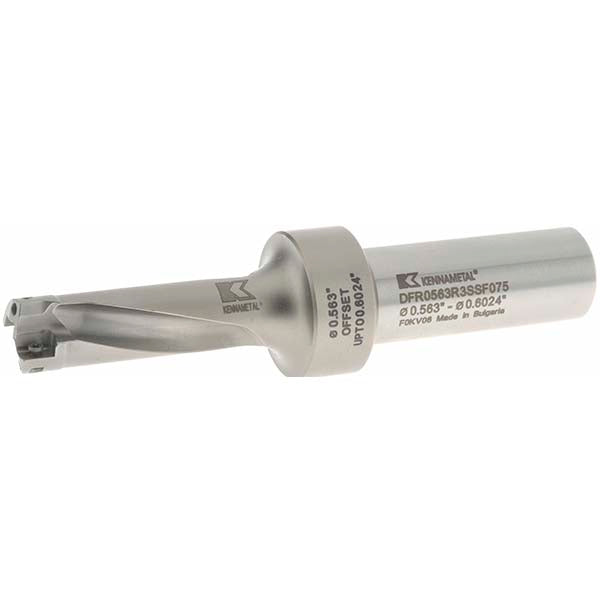

Indexable Drilling - Kennametal 1715091
MFR# 1715091Series DFR
$583.14List $699.42
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 1715091 indexable drilling. Series DFR.
Specifications
Body length2.6440
Body side coolant hole thread size in1/8-27
Compatible drill styleDFR
Compatible insert size code0202..
Compatible insert styleDFR
Coolant entry style code1-Axial Concentric Entry
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio3xD
Flute length1.6890
Insert compatibilityDFR0202.
Insert lock screwM2-0.4x4.5T6
Insert size0.2803x0.1929x0.1098
Maximum drill depth1.6890
Maximum drill depth range1.0000 to 2.0000
Maximum drill diameter0.6024
Number of drill inserts2
Overall length4.6440
Shank diameter in3/4
Shank end coolant hole thread size in1/8-27
Shank length2.0000
Shank typeWeldon Flat; Flange
Tool applicationDrilling
Tool materialSteel
Tool performanceGeneral Purpose
