Kennametal

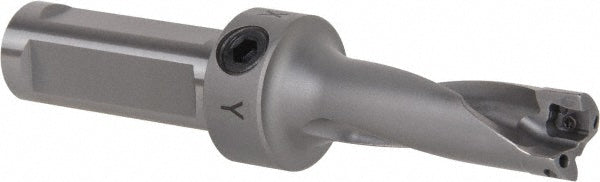

Indexable Drilling - Kennametal 1715093
MFR# 1715093Series DFR
$551.88List $602.95
Save 8%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 1715093 indexable drilling. Series DFR.
Specifications
Body length2.8270
Body side coolant hole thread size in1/8-27
Compatible drill styleDFR
Compatible insert size code0202..
Compatible insert styleDFR
Coolant entry style code1-Axial Concentric Entry
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio3xD
Flute length1.8750
Insert compatibilityDFR0202.
Insert lock screwM2-0.4x4.5T6
Insert size0.2803x0.1929x0.1098
Maximum drill depth in1-7/8
Maximum drill depth range1.0000 to 2.0000
Maximum drill diameter0.6644
Number of drill inserts2
Overall length4.8270
Shank diameter in3/4
Shank end coolant hole thread size in1/8-27
Shank length2.0000
Shank typeWeldon Flat; Flange
Tool applicationDrilling
Tool materialSteel
Tool performanceGeneral Purpose
