Kennametal

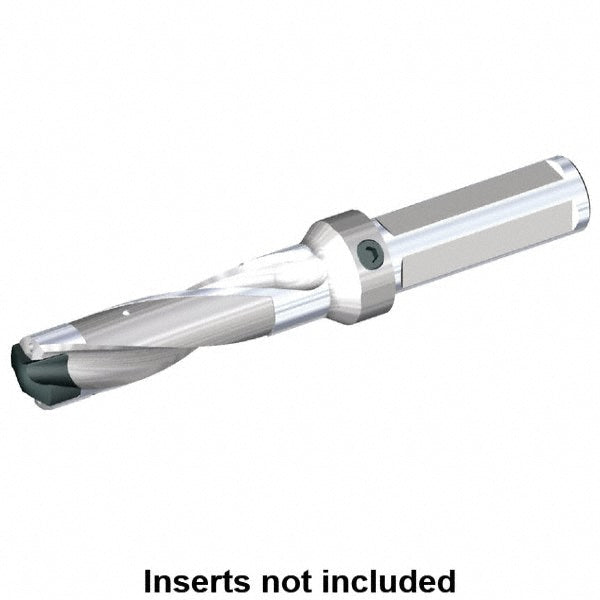

Indexable Drilling - Kennametal 1785245
MFR# 1785245Series KSEM
$422.45List $461.54
Save 8%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 1785245 indexable drilling. Series KSEM.
Specifications
Body side coolant hole thread size in1/8-27
Compatible insert styleKSEM0500
Coolant hole thread typeNPT
Coolant throughYes
Drill depth by diameter ratio3xD
Flute length1.9780
Insert seat sizeC
Maximum drill depth1.5000
Maximum drill depth range1.5000 to 2.5000
Maximum drill diameter0.5197
Minimum drill diameter0.5000
Overall length4.8752
Shank diameter (mm)19.05
Shank end coolant hole thread size in1/8-27
Shank length2.0000
Shank typeWeldon Flat
