Kennametal

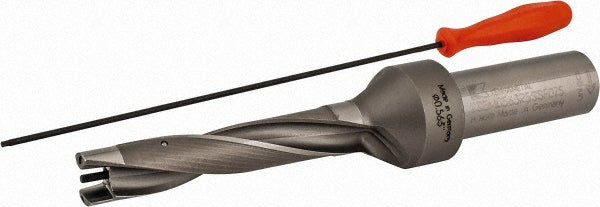

Indexable Drilling - Kennametal 1785289
MFR# 1785289Series KSEM
$500.20List $578.41
Save 13%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 1785289 indexable drilling. Series KSEM.
Specifications
Body side coolant hole thread size in1/8-27
Compatible insert styleKSEM0563
Coolant hole thread typeNPT
Coolant throughYes
Drill depth by diameter ratio5xD
Flute length3.3110
Insert seat sizeB
Maximum drill depth2.8100
Maximum drill depth range2.5000 to 3.5000
Maximum drill diameter0.5709
Minimum drill diameter0.5630
Overall length6.25
Shank diameter (mm)19.05
Shank end coolant hole thread size in1/8-27
Shank length2.0000
Shank typeWeldon Flat
