Kennametal

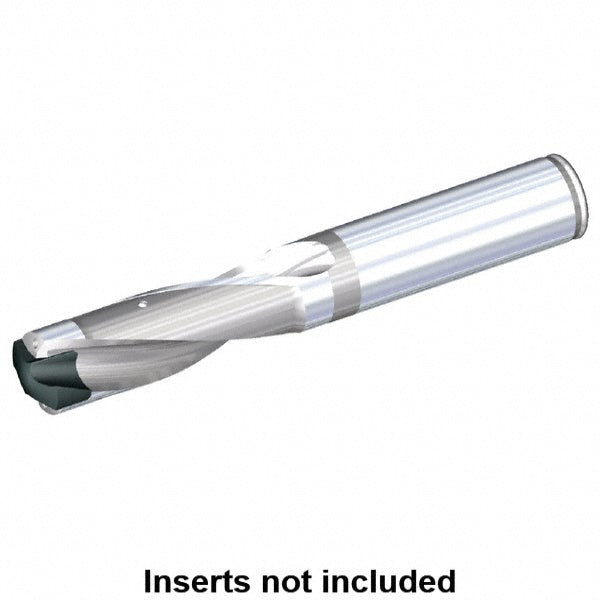

Indexable Drilling - Kennametal 1786056
MFR# 1786056Series KSEM
$454.68List $496.75
Save 8%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 1786056 indexable drilling. Series KSEM.
Specifications
Compatible insert styleKSEM0500
Coolant hole diameter0.1378
Coolant throughYes
Drill depth by diameter ratio5xD
Flute length3.0098
Insert seat sizeC
Maximum drill depth2.5000
Maximum drill depth range2.5000 to 3.5000
Maximum drill diameter0.5197
Minimum drill diameter0.5000
Overall length5.1252
Shank diameter (mm)19.05
Shank length2.0000
Shank typeStraight-Cylindrical
