Kennametal

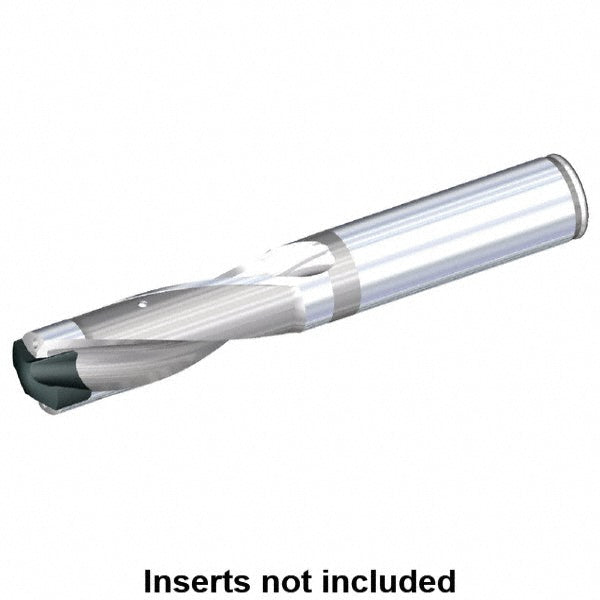

Indexable Drilling - Kennametal 1786062
MFR# 1786062Series KSEM
$473.73List $517.57
Save 8%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 1786062 indexable drilling. Series KSEM.
Specifications
Compatible insert styleKSEM0563
Coolant hole diameter0.1378
Coolant throughYes
Drill depth by diameter ratio5xD
Flute length3.3799
Insert seat sizeB
Maximum drill depth2.8098
Maximum drill depth range2.5000 to 3.5000
Maximum drill diameter0.5709
Minimum drill diameter0.5630
Overall length5.5
Shank diameter (mm)19.05
Shank length2.0000
Shank typeStraight-Cylindrical
