Kennametal

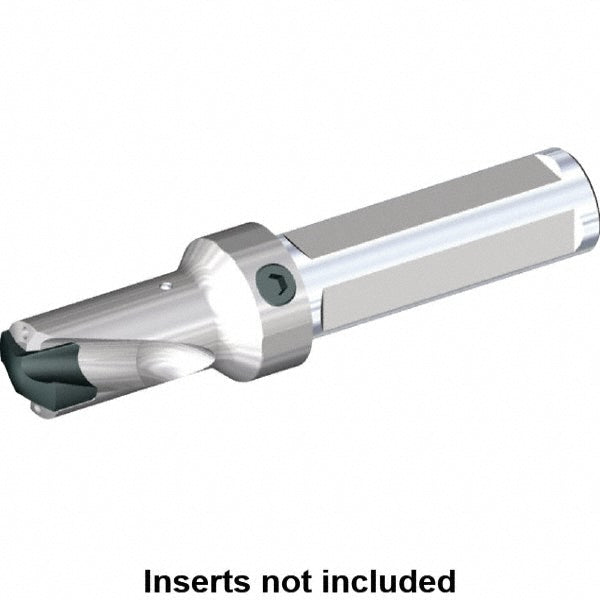

Indexable Drilling - Kennametal 1792253
MFR# 1792253Series KSEM
$433.87List $474.03
Save 8%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 1792253 indexable drilling. Series KSEM.
Specifications
Body length3.38
Body side coolant hole thread size in1/8-27
Compatible insert styleKSEM1422
Coolant hole thread typeNPT
Coolant throughYes
Drill depth by diameter ratio1xD
Flute length2.5839
Insert seat size10
Maximum drill depth1.5700
Maximum drill depth range1.5000 to 2.5000
Maximum drill diameter1.5748
Minimum drill diameter1.4181
Overall length6.6252
Shank diameter (mm)31.75
Shank end coolant hole thread size in1/4-18
Shank length3.2500
Shank typeWeldon Flat
