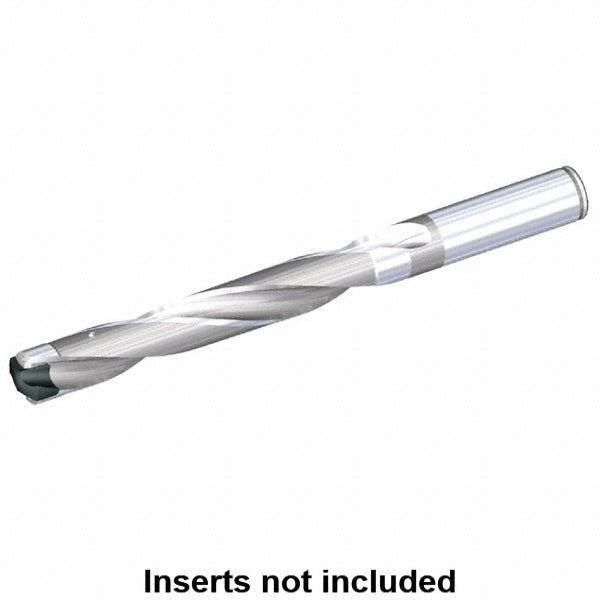

Indexable Drilling - Kennametal 1798205
MFR# 1798205Series KSEM
$525.20List $573.80
Save 8%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 1798205 indexable drilling. Series KSEM.
Specifications
Compatible insert styleKSEM0563
Coolant throughYes
Drill depth by diameter ratio7xD
Flute length4.5098
Insert seat sizeB
Maximum drill depth3.9400
Maximum drill depth range3.5000 to 4.5000
Maximum drill diameter0.5709
Minimum drill diameter0.5626
Overall length6.6252
Shank diameter (mm)19.05
Shank length2.0000
Shank typeStraight-Cylindrical
