Kennametal

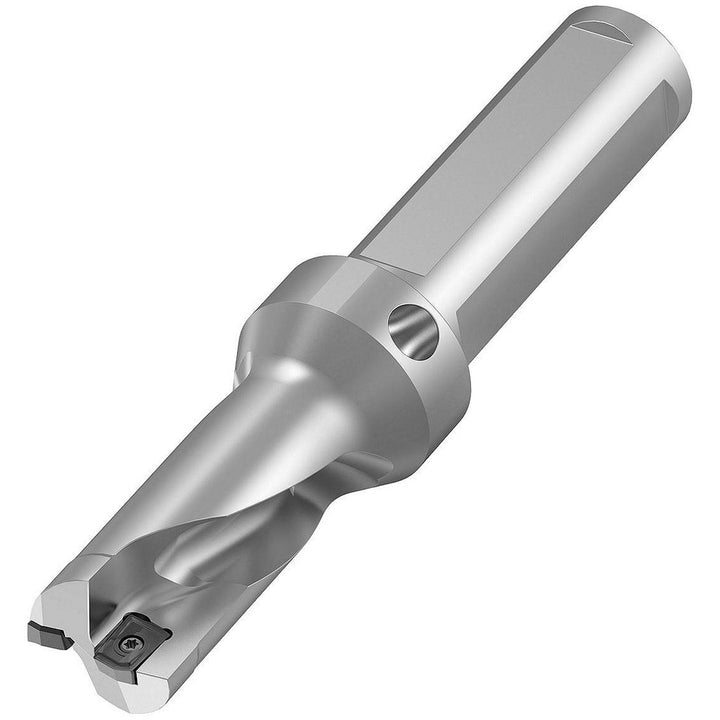

Indexable Drilling - Kennametal 2036658
MFR# 2036658Series DFR
$555.08List $665.76
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 2036658 indexable drilling. Series DFR.
Specifications
Body length2.3310
Body side coolant hole thread size in1/8-27
Compatible drill styleDFR
Compatible insert size code0302..
Compatible insert styleDFR
Coolant entry style code1-Axial Concentric Entry
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio2xD
Flute length1.3760
Insert compatibilityDFR0302.
Insert lock screwM2.2-0.45x5.2T7
Insert size0.3429x0.2362x0.1134
Maximum drill depth in1-3/8
Maximum drill depth range1.0000 to 2.0000
Maximum drill diameter0.7274
Number of drill inserts2
Overall length4.3310
Shank diameter in3/4
Shank end coolant hole thread size in1/8-27
Shank length2.0000
Shank typeWeldon Flat; Flange
Tool applicationDrilling
Tool materialSteel
Tool performanceGeneral Purpose
