Kennametal

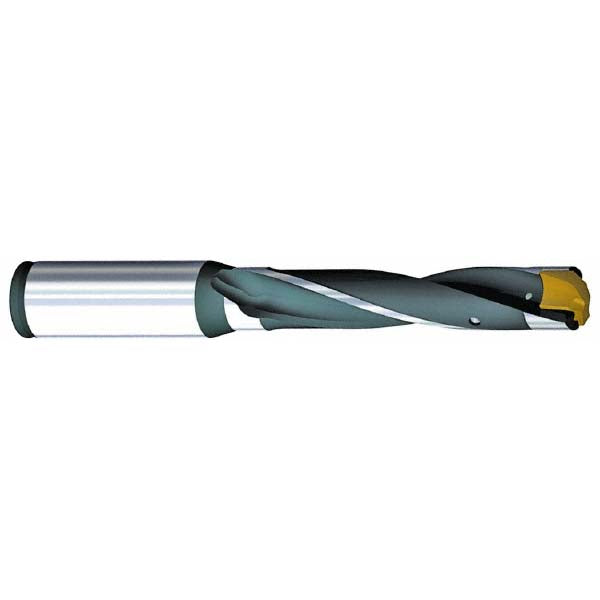

Indexable Drilling - Kennametal 2238538
MFR# 2238538Series KSEM
$471.20List $514.80
Save 8%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 2238538 indexable drilling. Series KSEM.
Specifications
Compatible insert styleKSEM0750
Coolant hole diameter0.1378
Coolant throughYes
Drill depth by diameter ratio3xD
Flute length2.9700
Insert seat size2
Maximum drill depth2.2500
Maximum drill depth range1.5000 to 2.5000
Maximum drill diameter0.7697
Minimum drill diameter0.7500
Overall length5.13
Shank diameter (mm)19.05
Shank length2.0000
Shank typeStraight-Cylindrical
