Kennametal

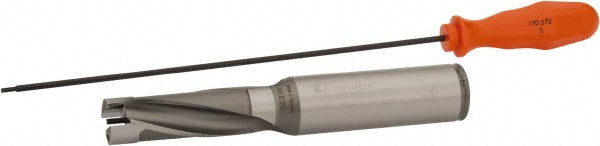

Indexable Drilling - Kennametal 2238544
MFR# 2238544Series KSEM
$496.41List $542.35
Save 8%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 2238544 indexable drilling. Series KSEM.
Specifications
Compatible insert styleKSEM0813
Coolant hole diameter0.1378
Coolant throughYes
Drill depth by diameter ratio3xD
Flute length3.2200
Insert seat size3
Maximum drill depth2.4400
Maximum drill depth range1.5000 to 2.5000
Maximum drill diameter0.8323
Minimum drill diameter0.8126
Overall length6.38
Shank diameter (mm)25.40
Shank length3.0000
Shank typeStraight-Cylindrical
