Kennametal

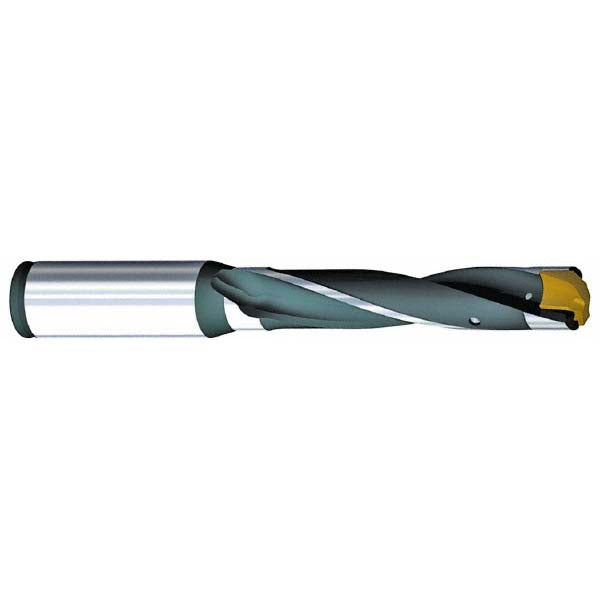

Indexable Drilling - Kennametal 2238553
MFR# 2238553Series KSEM
$555.52List $606.93
Save 8%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 2238553 indexable drilling. Series KSEM.
Specifications
Compatible insert styleKSEM0969
Coolant hole diameter0.1575
Coolant throughYes
Drill depth by diameter ratio3xD
Flute length3.8400
Insert seat size5
Maximum drill depth2.9100
Maximum drill depth range2.5000 to 3.5000
Maximum drill diameter0.9886
Minimum drill diameter0.9689
Overall length7
Shank diameter (mm)25.40
Shank length3.0000
Shank typeStraight-Cylindrical
