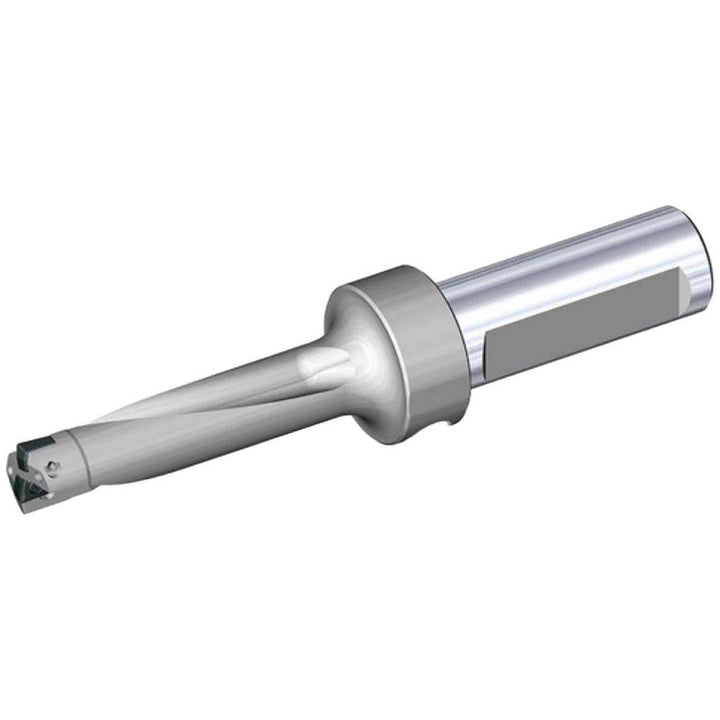

Indexable Drilling - Kennametal 3022354
MFR# 3022354Series DFR
$672.36List $734.58
Save 8%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 3022354 indexable drilling. Series DFR.
Specifications
Body length4.9910
Body side coolant hole thread size in1/8-27
Compatible drill styleDFR
Compatible insert size code0403..
Compatible insert styleDFR
Coolant entry style code1-Axial Concentric Entry
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio4xD
Flute length3.8760
Insert compatibilityDFR0403.
Insert lock screwM2.5-0.45x5.9T8
Insert size0.4236x0.2906x0.1492
Maximum drill depth3.8760
Maximum drill depth range3.0000 to 4.0000
Maximum drill diameter1.0080
Number of drill inserts2
Overall length7.9910
Shank diameter in1
Shank end coolant hole thread size in1/4-18
Shank length3.0000
Shank typeWeldon Flat; Flange
Tool applicationDrilling
Tool materialSteel
Tool performanceGeneral Purpose
