3/8" 5-Flute Solid Carbide Square End Mill, AlTiN - Kennametal 3580865

Kennametal

3/8" 5-Flute Solid Carbide Square End Mill, AlTiN - Kennametal 3580865

MFR# 3580865Series UCDE

$128.65List $162.13 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/8
Flutes5
MaterialSolid Carbide
CoatingAlTiN

Description

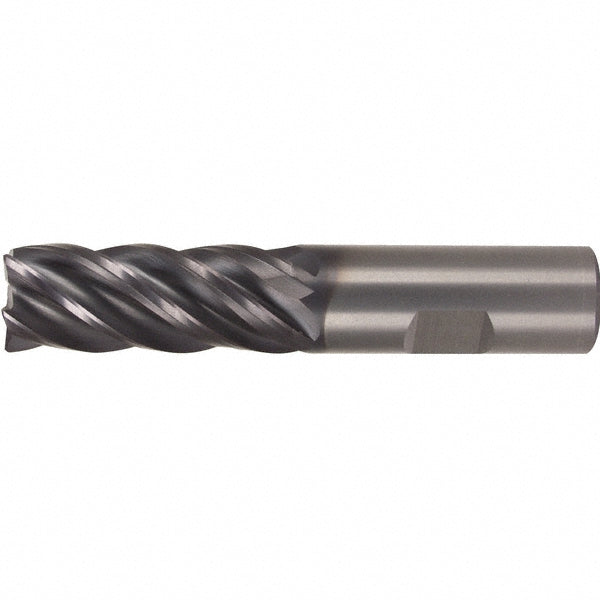

The Kennametal 3580865 is a 3/8 5-flute Solid Carbide (KC634M) square end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, hardened materials. 7/8 length of cut, 2-1/2 overall length. Series UCDE.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishAlTiN
Coating finish familyAlTiN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle38
Length of cut in7/8
Length of cut range0.8000 - 1.0000
Material gradeKC634M
Mill diameter in3/8
Number of flutes5
Overall length in2-1/2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hardened Materials
Shank diameter in3/8
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexYes
