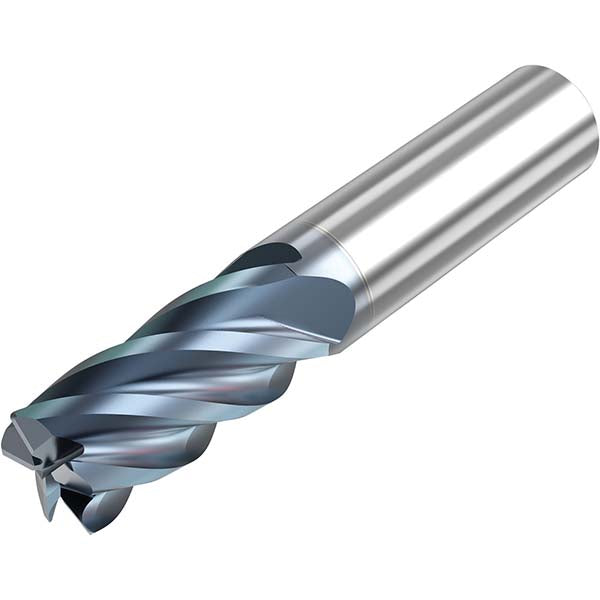

3/8" 5-Flute Solid Carbide Corner Radius End Mill, HTA - Seco 10008599

Seco

3/8" 5-Flute Solid Carbide Corner Radius End Mill, HTA - Seco 10008599

MFR# 10008599Series STS540

$95.12List $122.00 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/8
Flutes5
MaterialSolid Carbide
CoatingHTA

Description

The Seco 10008599 is a 3/8 5-flute Solid Carbide corner radius end mill with a HTA finish for longer tool life. 7/8 length of cut, 2-1/2 overall length. Series STS540.

Specifications

CentercuttingYes
Coating finishHTA
Corner radius0.0450
Corner radius tolerance+0.00100 to -0.00100 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Flute directionRight Hand
Flute typeSpiral
Length of cut in7/8
Length typeShort
Material removal typeRoughing
Mill diameter in3/8
Mill diameter tolerance+0.000100/-0.002000 in
Number of flutes5
Overall length in2-1/2
Overall length tolerance+0.0600/-0.0600 in
Shank diameter in3/8
Shank diameter tolerance-0.0001 - -0.0004 in
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixYes
Variable indexYes
