Kennametal

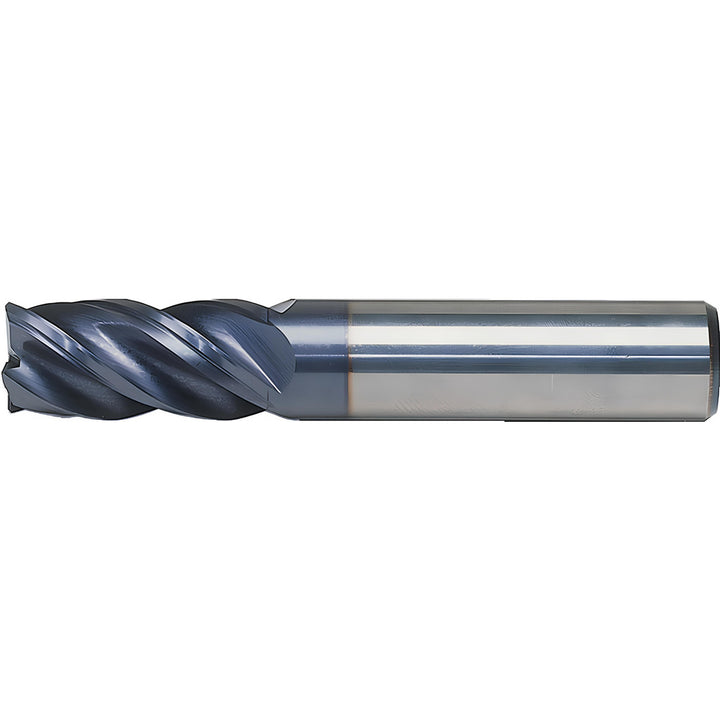

1/2" 4-Flute Solid Carbide Corner Radius End Mill, TiAlN - Kennametal 3637002

MFR# 3637002Series HPHV

$221.90List $284.59 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/2

Flutes4

MaterialSolid Carbide

CoatingTiAlN

Description

The Kennametal 3637002 is a 1/2 4-flute Solid Carbide (Submicron) corner radius end mill with a TiAlN; TiN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material. 2-1/2 length of cut, 4-1/2 overall length. Series HPHV.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishTiAlN

Coolant throughNo

Corner radius0.0600

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachYes

Flute directionRight Hand

Flute typeSpiral

For use withEM-CV Form AD; EM-CV Form AD; EM-CV Form AD; EM IN-HSK Form A; EM IN-HSK Form A

Helix styleHigh

Length of cut in2-1/2

Length typeExtra Long

Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material

Material gradeSubmicron

Material removal typeRoughing & Finishing

Mill diameter in1/2

Mill diameter tolerance+0.000000/-0.002000 in

Number of flutes4

Overall length in4-1/2

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material

Reach length in2-1/2

Shank diameter in1/2

Shank diameter tolerance+0.00000/-0.00043 in

Shank typeWeldon Flat

Single or double endSingle

Variable helixNo

Variable indexNo
