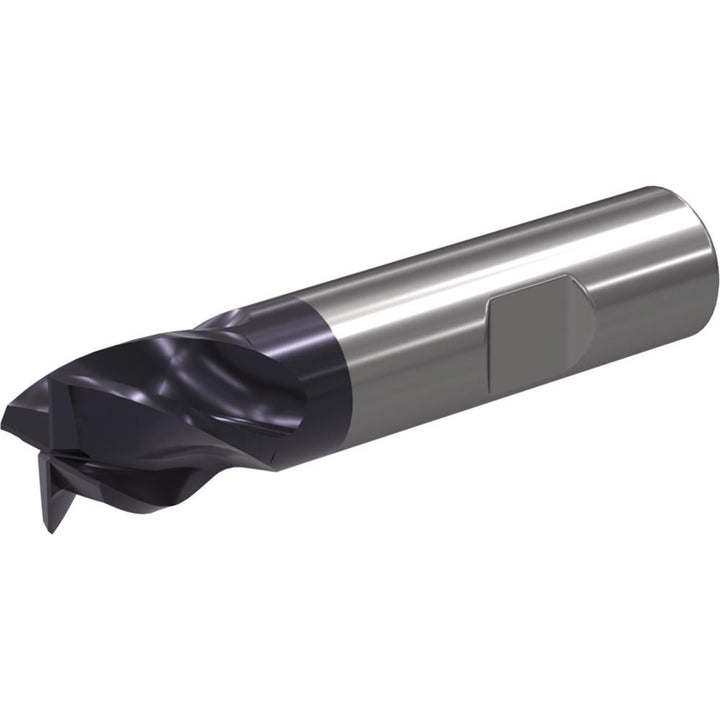

0.5000" 4-Flute Solid Carbide Roughing & Finishing End Mill, WU20PE - Widia 6946292

Widia

0.5000" 4-Flute Solid Carbide Roughing & Finishing End Mill, WU20PE - Widia 6946292

MFR# 6946292Series W441

$119.81List $150.99 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingWU20PE

Description

The Widia 6946292 is a 0.5000 4-flute Solid Carbide (WU20PE) roughing & finishing end mill with a WU20PE finish for longer tool life. 2-1/2 length of cut. Series W441.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishWU20PE
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle37/39
Length of cut in2-1/2
Length typeRegular
Material gradeWU20PE
Mill diameter0.5000
Mill diameter frac in1/2
Neck diameter in0.5000
Number of flutes4
Shank diameter in1/2
Shank typeWeldon Flat
Variable helixNo
Variable indexNo
