Kennametal

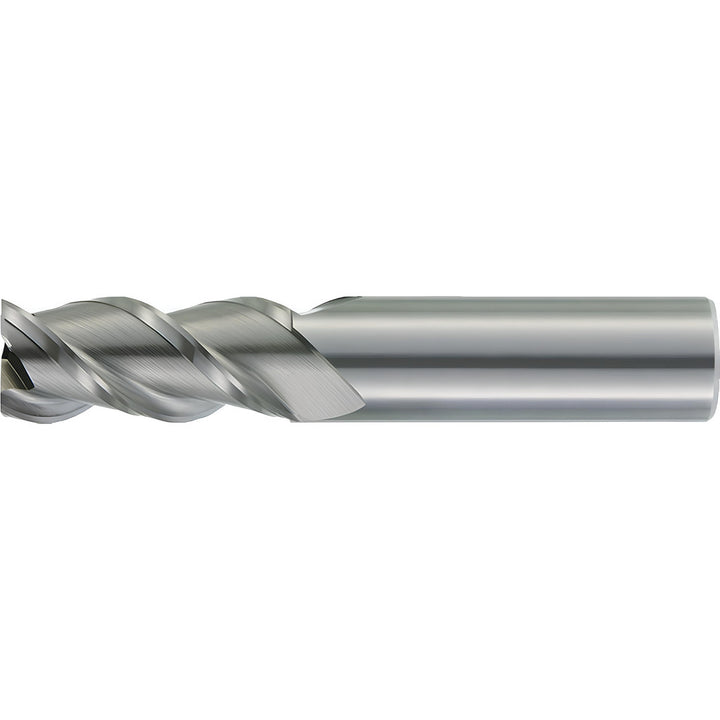

3/8" 3-Flute Solid Carbide Corner Radius End Mill - Kennametal 3870475

MFR# 3870475Series AADE

$97.04List $124.47 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/8

Flutes3

MaterialSolid Carbide

CoatingBright/Uncoated

Description

The Kennametal 3870475 is a 3/8 3-flute Solid Carbide (Submicron) corner radius end mill. Suited for non-ferrous metal. 1-1/4 length of cut, 3-1/2 overall length. Series AADE.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishBright/Uncoated

Coolant throughNo

Corner radius0.0600

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withHC 1/2 - HC 1 1/4 Hydraulic Sleeves Inch with Inch Bores

Helix styleHigh

Length of cut in1-1/4

Length typeLong

Material applicationNon-Ferrous Metal

Material gradeSubmicron

Material removal typeRoughing

Mill diameter in3/8

Number of flutes3

Overall length in3-1/2

PitchCoarse

Primary workpiece materialNon-Ferrous Metal

Shank diameter in3/8

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
