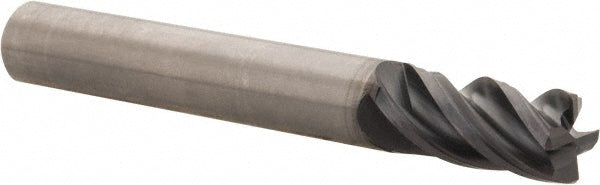

0.3150" 4-Flute Solid Carbide Corner Chamfer End Mill, AlTiN - Kennametal 4046269

Kennametal

0.3150" 4-Flute Solid Carbide Corner Chamfer End Mill, AlTiN - Kennametal 4046269

MFR# 4046269Series F4AS

$114.17List $143.89 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

The Kennametal 4046269 is a 0.3150 4-flute Solid Carbide corner chamfer end mill with a AlTiN finish for longer tool life. 0.6299 length of cut. Series F4AS.

Specifications

CentercuttingYes
Chamfer length0.0400
ChipbreakerNo
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Chamfer
Extended reachNo
Flute directionRight Hand
Helix angle38
Length of cut0.6299
Mill diameter0.3150
Number of flutes4
Shank diameter (mm)8.00
Shank typeStraight-Cylindrical
Single or double endSingle
