M.A. Ford.

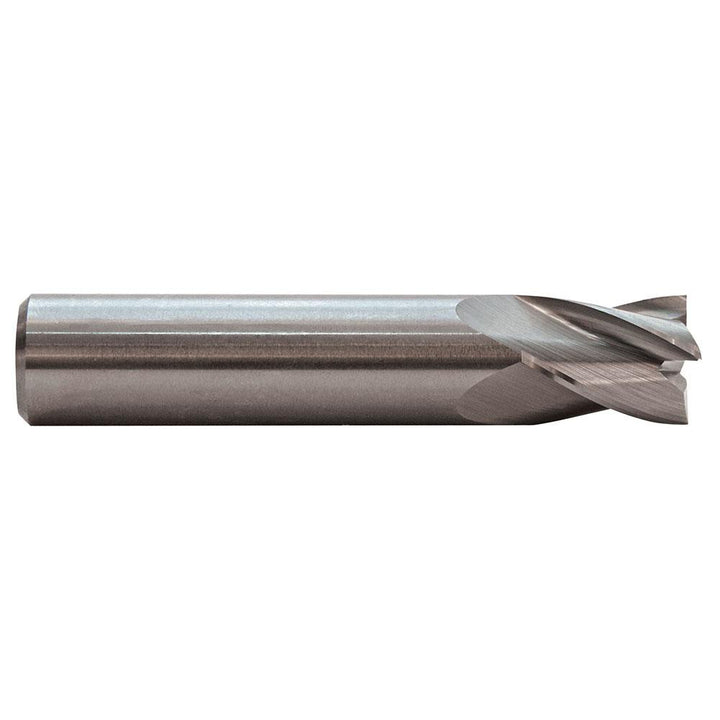

0.3150" 4-Flute Solid Carbide Square End Mill, TiCN - M.A. Ford. 16331500C

MFR# 16331500CSeries 163

$41.44List $53.14 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes4

MaterialSolid Carbide

CoatingTiCN

Description

The M.A. Ford. 16331500C is a 0.3150 4-flute Solid Carbide (Micrograin) square end mill with a TiCN finish for longer tool life. 0.5118 length of cut. Series 163.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishTiCN

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeHelical

Helix angle30

Length of cut0.5118

Length of cut range0.5000 - 0.6000

Length typeStub

Material gradeMicrograin

Mill diameter0.3150

Mill diameter tolerance+0.000 to -0.058 mm

Number of flutes4

Overall length (mm)51

Shank diameter0.315

Shank typeStraight-Cylindrical

Variable helixNo

Variable indexNo
