Kennametal

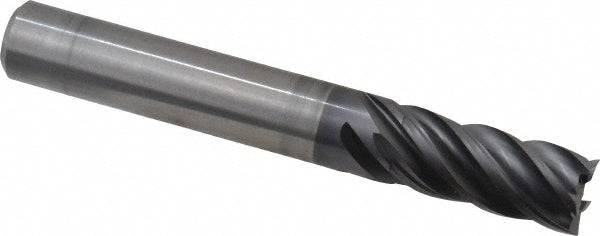

0.3937" 5-Flute Solid Carbide Square End Mill, AlTiN - Kennametal 4046384

MFR# 4046384Series UCDE

$104.04List $133.44 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes5

MaterialSolid Carbide

CoatingAlTiN

Description

The Kennametal 4046384 is a 0.3937 5-flute Solid Carbide (KCPM15) square end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, hardened materials. 0.8661 length of cut. Series UCDE.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishAlTiN

Coating finish familyAlTiN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle38

Length of cut0.8661

Length of cut range0.8000 - 1.0000

Material gradeKCPM15

Mill diameter0.3937

Number of flutes5

Overall length (mm)72.00

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hardened Materials

Shank diameter0.3937

Single or double endSingle

System of measurementMetric

Variable helixNo

Variable indexYes
