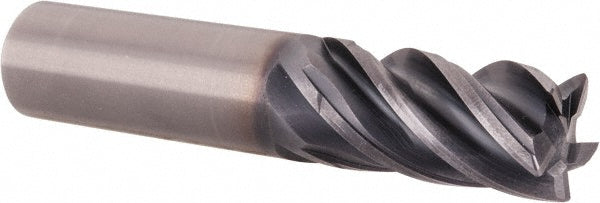

0.7087" 5-Flute Solid Carbide Corner Radius End Mill, AlTiN - Kennametal 4046395

Kennametal

0.7087" 5-Flute Solid Carbide Corner Radius End Mill, AlTiN - Kennametal 4046395

MFR# 4046395Series UCDE

$545.56List $687.53 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes5
MaterialSolid Carbide
CoatingAlTiN

Description

The Kennametal 4046395 is a 0.7087 5-flute Solid Carbide (Submicron) corner radius end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, hard material. Series UCDE.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishAlTiN
Coolant throughNo
Corner radius0.0295
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withHC 1/2 - HC 1 1/4 Hydraulic Sleeves Inch with Metric Bores; ER Single Angle Standard Collets; ER Single Angle Standard Collets; ER Single Angle Standard Collets; ER Single Angle Standard Collets; HC-DV Form B/AD
Helix styleHigh
Length of cut1.2598
Length typeShort
Material applicationSteel; Stainless Steel; Cast Iron; Hard Material
Material gradeSubmicron
Material removal typeRoughing & Finishing
Mill diameter0.7087
Number of flutes5
Overall length (mm)92.00
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material
Shank diameter (mm)18.00
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
