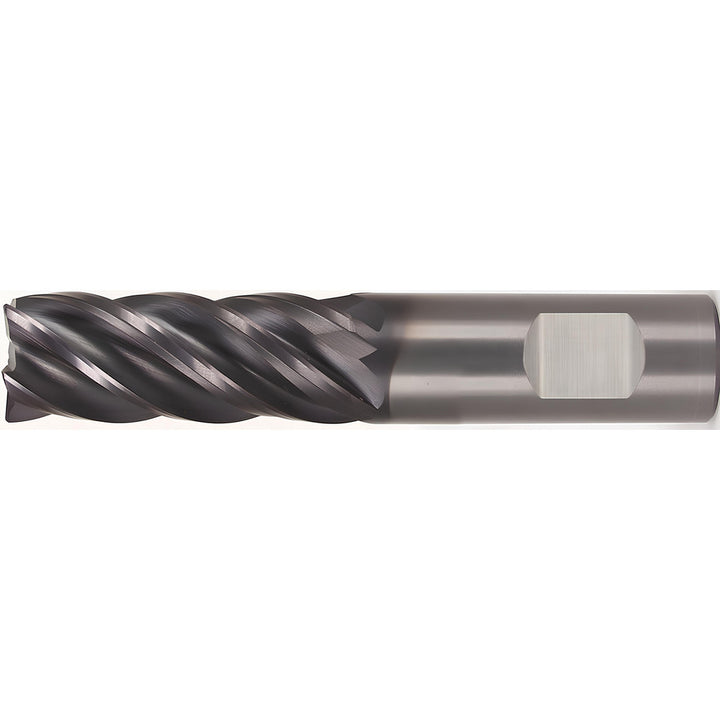

1/2" 5-Flute Solid Carbide Corner Radius End Mill, AlTiN - Kennametal 4048722

Kennametal

1/2" 5-Flute Solid Carbide Corner Radius End Mill, AlTiN - Kennametal 4048722

MFR# 4048722Series UCDE

$207.71List $266.39 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes5
MaterialSolid Carbide
CoatingAlTiN

Description

The Kennametal 4048722 is a 1/2 5-flute Solid Carbide (Submicron) corner radius end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, hard material. 1-1/4 length of cut, 3 overall length. Series UCDE.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishAlTiN
Coolant throughNo
Corner radius0.0300
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withEnd Mill Toolholders
Helix styleHigh
Length of cut in1-1/4
Length typeStandard
Material applicationSteel; Stainless Steel; Cast Iron; Hard Material
Material gradeSubmicron
Material removal typeRoughing & Finishing
Mill diameter in1/2
Number of flutes5
Overall length in3
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material
Shank diameter in1/2
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
