Kennametal

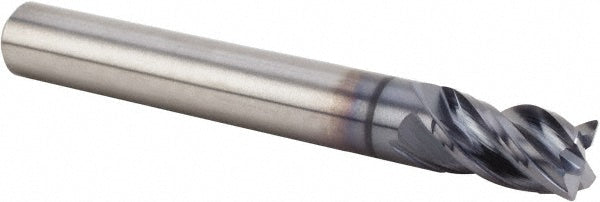

3/8" 4-Flute Solid Carbide Corner Radius End Mill, AlTiN - Kennametal 4071885
MFR# 4071885Series HPHV
$171.51List $209.35
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter3/8
Flutes4
MaterialSolid Carbide
CoatingAlTiN
Description
The Kennametal 4071885 is a 3/8 4-flute Solid Carbide (Submicron) corner radius end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, hard material. 1 length of cut, 3 overall length. Series HPHV.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Coolant throughNo
Corner radius0.0150
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
For use withHC 1/2 - HC 1 1/4 Hydraulic Sleeves Inch with Inch Bores
Helix styleHigh
Length of cut in1
Length typeShort
Material applicationSteel; Stainless Steel; Cast Iron; Hard Material
Material gradeSubmicron
Material removal typeRoughing
Mill diameter in3/8
Number of flutes4
Overall length in3
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material
Reach length in1
Shank diameter in3/8
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
