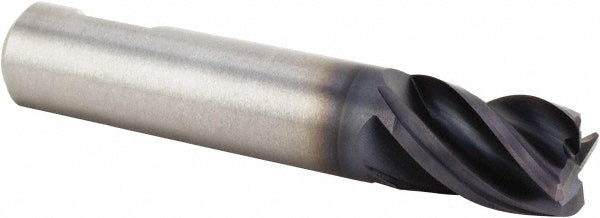

0.5000" 4-Flute Solid Carbide Single End Mill, AlTiN - Kennametal 4169828

Kennametal

0.5000" 4-Flute Solid Carbide Single End Mill, AlTiN - Kennametal 4169828

MFR# 4169828Series UEDE

$142.81List $179.97 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

The Kennametal 4169828 is a 0.5000 4-flute Solid Carbide (KC643M) single end mill with a AlTiN finish for longer tool life. 5/8 length of cut. Series UEDE.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
End typeSingle
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle38
Length of cut in5/8
Length typeStub
Material gradeKC643M
Mill diameter0.5000
Mill diameter frac in1/2
Mill diameter tolerance+0.000/-0.002 in
Number of flutes4
Shank diameter in1/2
Shank diameter tolerance+0.00000/-0.00043 in
Variable helixNo
Variable indexYes
