Kennametal

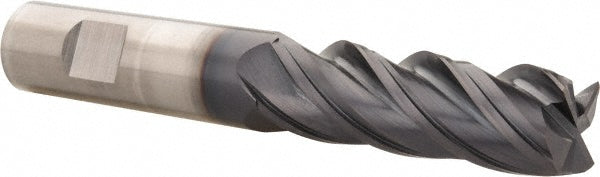

3/4" 4-Flute Solid Carbide Square End Mill, AlTiN - Kennametal 5053664
MFR# 5053664Series HPHV
$603.51List $760.57
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter3/4
Flutes4
MaterialSolid Carbide
CoatingAlTiN
Description
The Kennametal 5053664 is a 3/4 4-flute Solid Carbide square end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, hardened materials. 2-1/4 length of cut, 5 overall length. Series HPHV.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Coating finish familyAlTiN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle38
Length of cut in2-1/4
Length of cut range2.0000+
Mill diameter in3/4
Number of flutes4
Overall length in5
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hardened Materials
Shank diameter in3/4
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexYes
