Kennametal

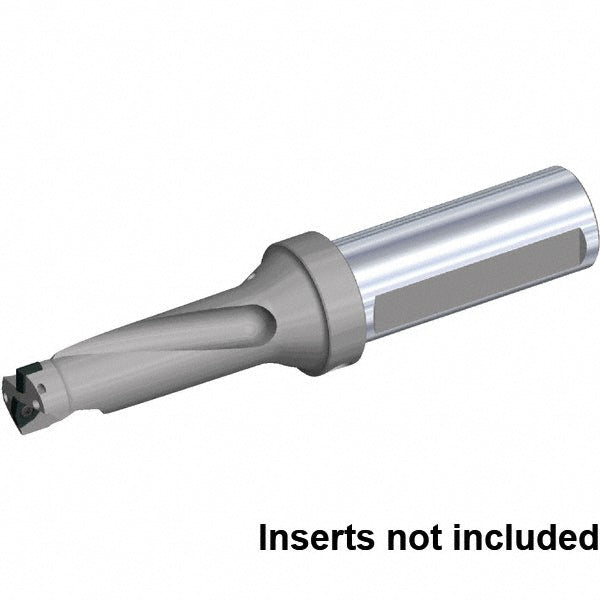

Indexable Drilling - Kennametal 5691795
MFR# 5691795Series DFSP
$617.40List $662.80
Save 6%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 5691795 indexable drilling. Series DFSP.
Specifications
Body length5.3740
Body side coolant hole thread size in1/8-27
Compatible drill styleDFSP
Compatible insert size code05T3..; 09T2.00
Compatible insert styleDFT; SPPX
Coolant entry style code3- Axial Concentric & Radial
Coolant hole thread size"1/4-18 NPT"
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio3xD
Flute length3.7500
Insert compatibilityDFT05T3.; SPPX09T3.
Insert lock screwM3-0.5x7.2T9
Insert size0.2080x0.1480; 0.3750x0.1563
Maximum drill depth in3-3/4
Maximum drill depth range3.0000 to 4.0000
Maximum drill diameter1.2900
Number of drill inserts2
Overall length8.6240
Shank diameter in1-1/4
Shank end coolant hole thread size in1/4-18
Shank length3.2500
Shank typeWeldon Flat; Flange
Tool applicationDrilling
Tool materialSteel
Tool performanceGeneral Purpose
