Kennametal

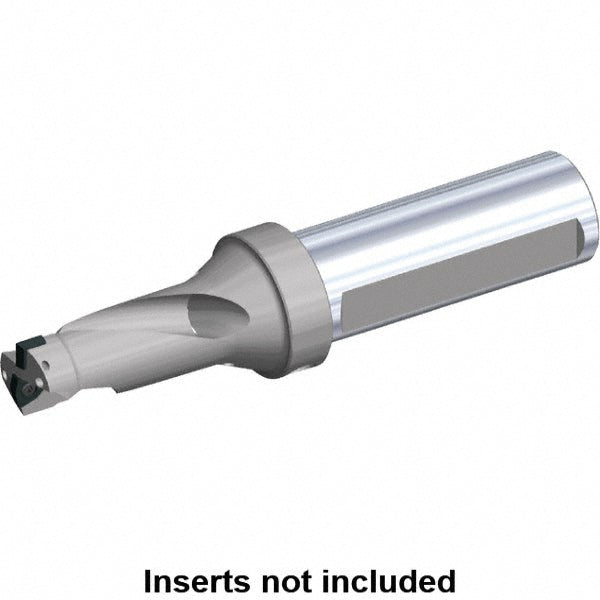

Indexable Drilling - Kennametal 5691846
MFR# 5691846Series DFSP
$744.27List $892.67
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 5691846 indexable drilling. Series DFSP.
Specifications
Body length4.7500
Body side coolant hole thread size in1/8-27
Compatible drill styleDFSP
Compatible insert size code06T3..; 1204..
Compatible insert styleDFT; SPPX
Coolant entry style code3- Axial Concentric & Radial
Coolant hole thread size"1/4-18 NPT"
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio2xD
Flute length3.0000
Insert compatibilityDFT06T3.; SPPX1204.
Insert lock screwM4-0.7x10T15
Insert size0.2600x0.1480; 0.1772x0.1874
Maximum drill depth in3
Maximum drill depth range3.0000 to 4.0000
Maximum drill diameter1.5400
Number of drill inserts2
Overall length in8-1/2
Shank diameter in1-1/2
Shank end coolant hole thread size in1/4-18
Shank length3.7500
Shank typeWeldon Flat; Flange
Tool applicationDrilling
Tool materialSteel
Tool performanceGeneral Purpose
