Kennametal

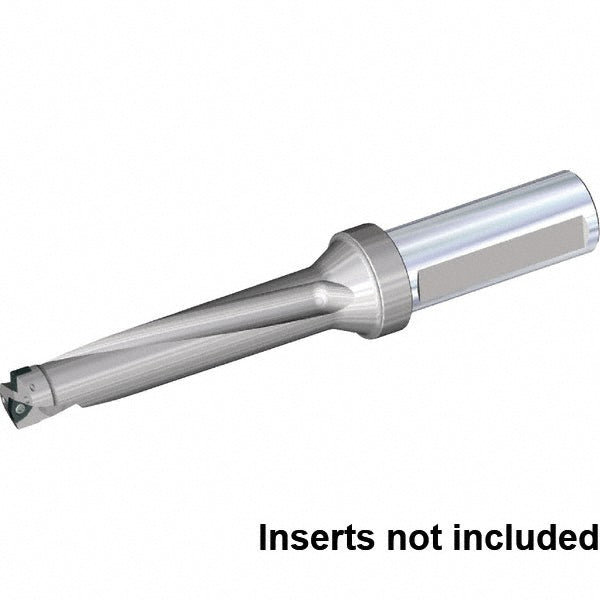

Indexable Drilling - Kennametal 5692392
MFR# 5692392Series DFSP
$731.39List $799.07
Save 8%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 5692392 indexable drilling. Series DFSP.
Specifications
Body length7.1240
Body side coolant hole thread size in1/8-27
Compatible drill styleDFSP
Compatible insert size code05T3..; 09T2.00
Compatible insert styleDFT; SPPX
Coolant entry style code3- Axial Concentric & Radial
Coolant hole thread size"1/4-18 NPT"
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio5xD
Flute length5.6250
Insert compatibilityDFT05T3.; SPPX09T3.
Insert lock screwM3-0.5x7.2T9
Insert size0.2080x0.1480; 0.3750x0.1563
Maximum drill depth in5-5/8
Maximum drill depth range5.0000 to 7.0000
Maximum drill diameter in1-1/8
Number of drill inserts2
Overall length10.3740
Shank diameter in1-1/4
Shank end coolant hole thread size in1/4-18
Shank length3.2500
Shank typeWeldon Flat; Flange
Tool applicationDrilling
Tool materialSteel
Tool performanceGeneral Purpose
