Kennametal

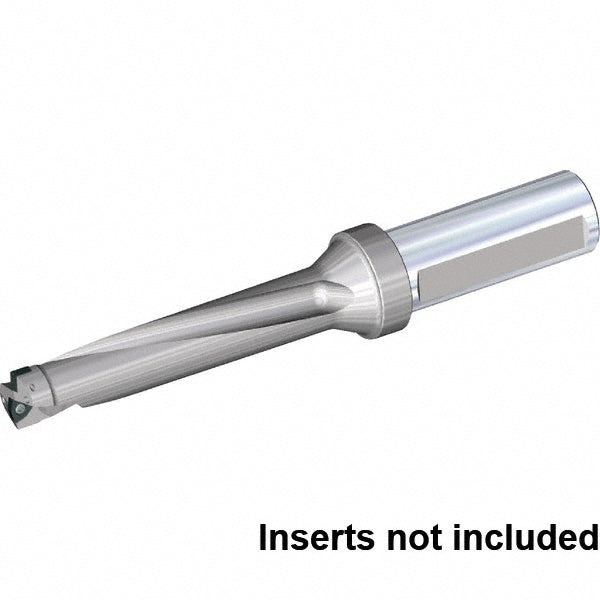

Indexable Drilling - Kennametal 5692403
MFR# 5692403Series DFSP
$850.36List $929.05
Save 8%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 5692403 indexable drilling. Series DFSP.
Specifications
Body length9.2500
Body side coolant hole thread size in1/8-27
Compatible drill styleDFSP
Compatible insert size code06T3..; 1204..
Compatible insert styleDFT; SPPX
Coolant entry style code3- Axial Concentric & Radial
Coolant hole thread size"1/4-18 NPT"
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio5xD
Flute length7.5000
Insert compatibilityDFT06T3.; SPPX1204.
Insert lock screwM4-0.7x10T15
Insert size0.2600x0.1480; 0.1772x0.1874
Maximum drill depth in7-1/2
Maximum drill depth range7.0000 to 10.0000
Maximum drill diameter in1-1/2
Number of drill inserts2
Overall length in13
Shank diameter in1-1/2
Shank end coolant hole thread size in1/4-18
Shank length3.7500
Shank typeWeldon Flat; Flange
Tool applicationDrilling
Tool materialSteel
Tool performanceGeneral Purpose
