Kennametal

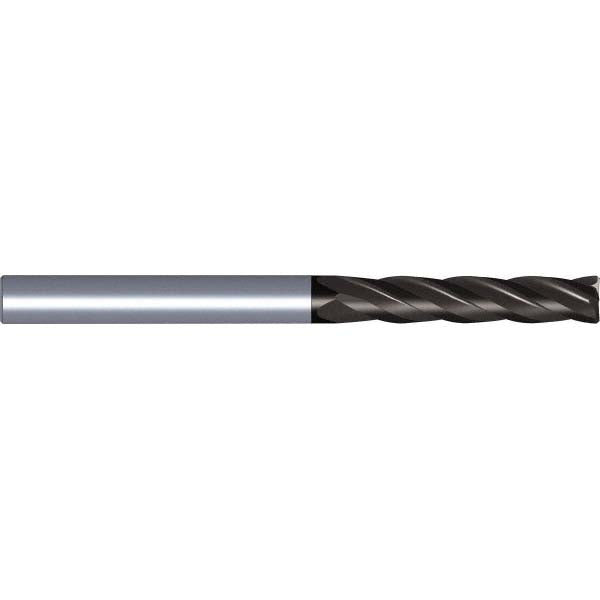

1/32" 4-Flute Solid Carbide Square End Mill, TiAlN - Kennametal 6086554
MFR# 6086554Series 4SE.IS-R-L-X
$26.84List $33.83
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/32
Flutes4
MaterialSolid Carbide
CoatingTiAlN
Description
The Kennametal 6086554 is a 1/32 4-flute Solid Carbide (KC633M) square end mill with a TiAlN finish for longer tool life. Suited for steel, stainless steel, cast iron. 5/64 length of cut, 1-1/2 overall length. Series 4SE.IS-R-L-X.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishTiAlN
Coating finish familyTiAlN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in5/64
Length of cut range0.0000 - 0.1000
Material gradeKC633M
Mill diameter in1/32
Number of flutes4
Overall length in1-1/2
Primary workpiece materialSteel; Stainless Steel; Cast Iron
Shank diameter in1/8
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
