Kennametal

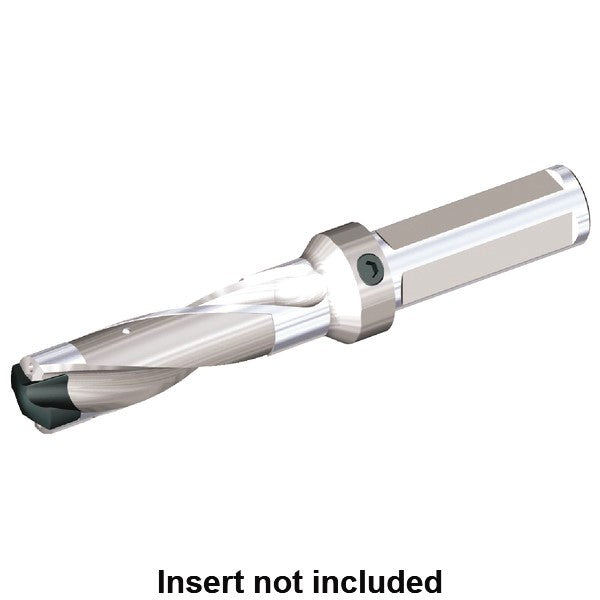

Indexable Drilling - Kennametal 6123756
MFR# 6123756Series KSEM
$922.57List $1,007.94
Save 8%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 6123756 indexable drilling. Series KSEM.
Specifications
Body length222.30
Compatible insert styleKSEM3334HPGM
Coolant hole diameter (mm)6.00
Coolant throughYes
Drill depth by diameter ratio5xD
Flute length (mm)207.50
Insert seat size9
Maximum drill depth (mm)166.70
Maximum drill depth range (mm)160.00 to 200.00
Maximum drill diameter1.4170
Minimum drill diameter1.3126
Overall length (mm)317.55
Shank diameter in1-1/2
Shank length3.7500
Shank typeStraight-Cylindrical
Toolholder styleKSEM
Tool materialSteel
