Kennametal

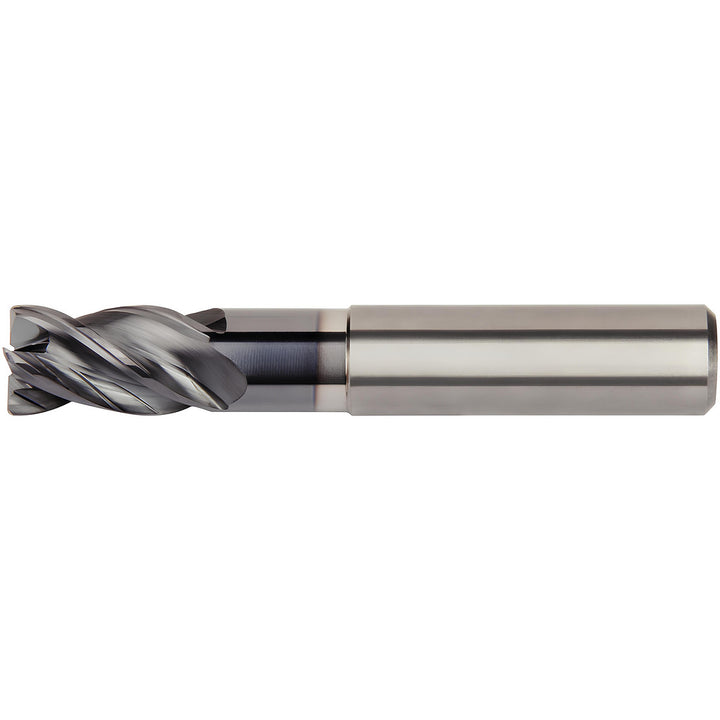

0.6299" 4-Flute Solid Carbide Corner Radius End Mill, AlTiN - Kennametal 6676277

MFR# 6676277Series H1TE

$276.82List $355.03 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes4

MaterialSolid Carbide

CoatingAlTiN

Description

The Kennametal 6676277 is a 0.6299 4-flute Solid Carbide (Submicron) corner radius end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material. Series H1TE.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAlTiN

Coolant throughNo

Corner radius (mm)0.50

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachYes

Flute directionRight Hand

Flute typeSpiral

For use withHC 1/2 - HC 1 1/4 Hydraulic Sleeves Inch with Metric Bores; ER Single Angle Standard Collets; ER Single Angle Standard Collets; ER Single Angle Standard Collets

Length of cut0.5000

Length typeShort

Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material

Material gradeSubmicron

Material removal typeRoughing & Finishing

Mill diameter0.6299

Neck diameter (mm)15.04

Number of flutes4

Overall length (mm)100.00

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material

Reach length (mm)48.46

Shank diameter (mm)16.00

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
