SGS

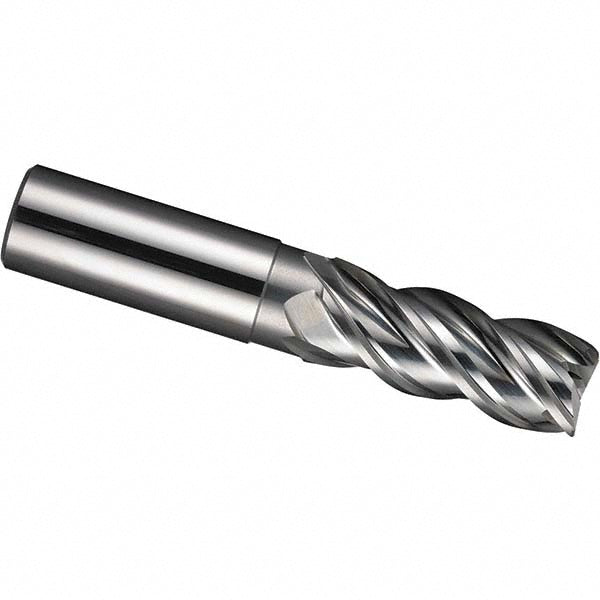

0.6299" 4-Flute Solid Carbide Corner Radius End Mill, TIB2 - SGS 44755

MFR# SGS-44755Series APF

$499.73List $619.39 Save 19%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes4

MaterialSolid Carbide

CoatingTIB2

Description

The SGS 44755 is a 0.6299 4-flute Solid Carbide (Micrograin) corner radius end mill with a TIB2 finish for longer tool life. Suited for non-ferrous metal. Series APF.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishTIB2

Coolant throughYes

Corner radius (mm)3.00

Corner radius tolerance-0.0300 to 0.0300 mm

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachYes

Flute directionRight Hand

Flute typeHelical

For use withEnd Mill Holders

Helix styleHigh

Length of cut0.0315

Length typeExtra Long

Material applicationNon-Ferrous Metal

Material gradeMicrograin

Material removal typeRoughing & Finishing

Mill diameter0.6299

Mill diameter tolerance-0.0500 to 0.0100 mm

Neck diameter (mm)15.16

Number of flutes4

Overall length (mm)125.00

Overall length tolerance+0.0600 to -0.0600 in

PitchNormal

Primary workpiece materialNon-Ferrous Metal

Reach length (mm)82.00

Shank diameter (mm)16.00

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexYes
