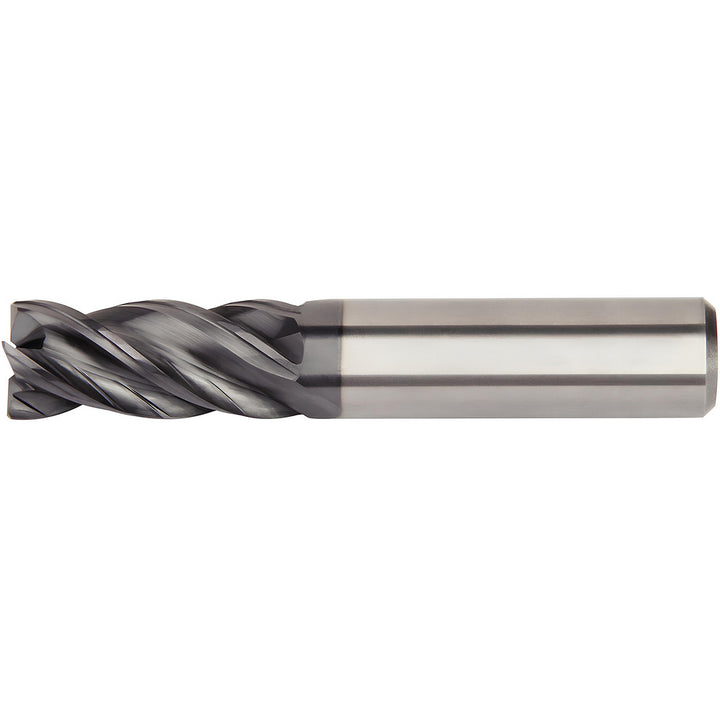

1/4" 4-Flute Solid Carbide Corner Radius End Mill, AlTiN - Kennametal 6676359

Kennametal

1/4" 4-Flute Solid Carbide Corner Radius End Mill, AlTiN - Kennametal 6676359

MFR# 6676359Series H1TE

$66.47List $85.24 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/4
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

The Kennametal 6676359 is a 1/4 4-flute Solid Carbide (Submicron) corner radius end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material. 3/8 length of cut, 2 overall length. Series H1TE.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Coolant throughNo
Corner radius0.0300
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withHC 20M - HC 32M Hydraulic Sleeves Metric with Inch Bores; HC-CV Form AD
Length of cut in3/8
Length typeShort
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Material removal typeRoughing & Finishing
Mill diameter in1/4
Neck diameter0.4441
Number of flutes4
Overall length in2
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Shank diameter in1/4
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
