Kennametal

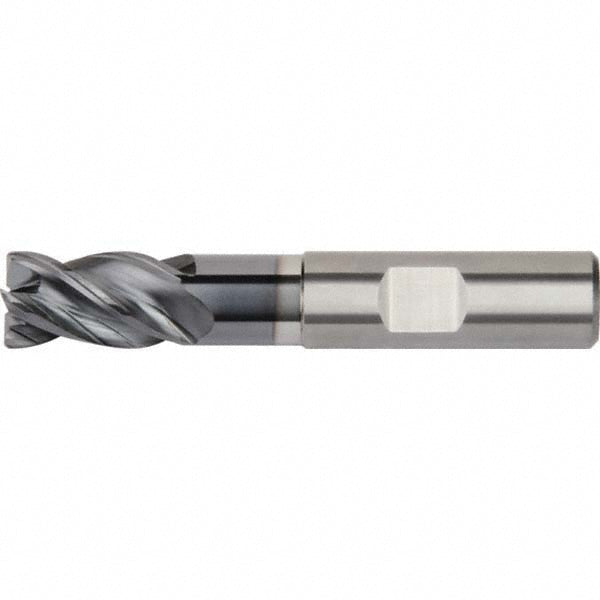

0.2362" 4-Flute Solid Carbide Square End Mill, AlTiN - Kennametal 6769588

MFR# 6769588Series H1TE

$72.55List $93.04 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes4

MaterialSolid Carbide

CoatingAlTiN

Description

The Kennametal 6769588 is a 0.2362 4-flute Solid Carbide (KCPM15) square end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, high-temp alloy, hardened materials. Series H1TE.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAlTiN

Coating finish familyAlTiN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachYes

Flute directionRight Hand

Flute typeSpiral

Helix angle36-39

Length of cut (mm)13.00

Material gradeKCPM15

Mill diameter0.2362

Number of flutes4

Overall length (mm)57.00

Primary workpiece materialSteel; Stainless Steel; Cast Iron; High-Temp Alloy; Hardened Materials

Reach length (mm)18.00

Shank diameter0.2362

Single or double endSingle

System of measurementMetric

Variable helixYes

Variable indexYes
