Kyocera

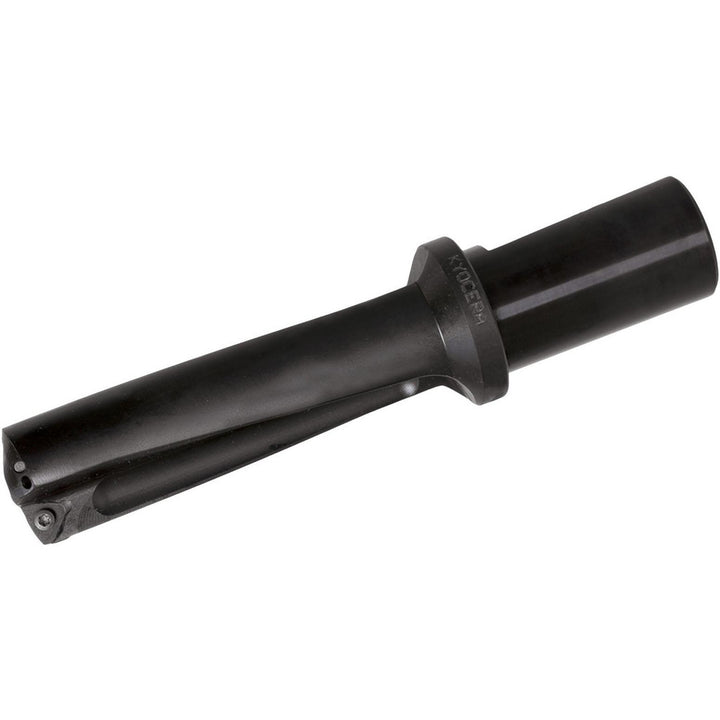

Indexable Drilling - Kyocera OTM86167
MFR# OTM86167Series Holeshot
$404.85List $501.78
Save 19%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kyocera OTM86167 indexable drilling. Series Holeshot.
Specifications
Body length3.4900
Compatible drill styleDR
Compatible insert styleWCMX
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio3xD
Insert compatibilityWCMX 040204-M1A
Insert size0.0940
Maximum drill depth2.5300
Maximum drill depth range2.0000 to 3.0000
Maximum drill diameter in27/32
Number of drill inserts2
Shank diameter in3/4
Shank length2.0300
Shank typeWhistle Notch
Tool materialSteel
