Kyocera

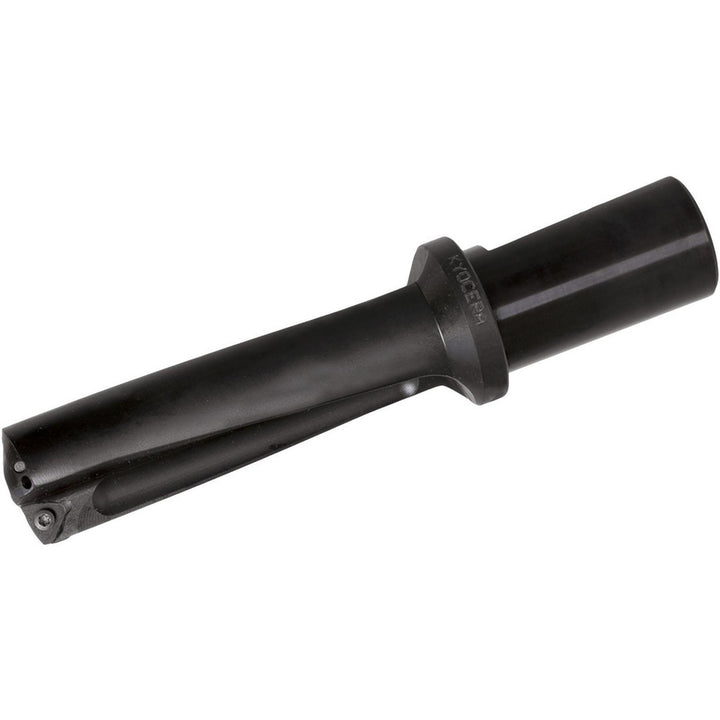

Indexable Drilling - Kyocera OTM86183
MFR# OTM86183Series Holeshot
$548.71List $668.27
Save 17%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kyocera OTM86183 indexable drilling. Series Holeshot.
Specifications
Body length3.9000
Compatible drill styleDR
Compatible insert styleWCMX
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio3xD
Insert compatibilityWCMX 050308-M1A
Insert size0.0940 (Insert2); 0.1250 (Insert1)
Maximum drill depth in3
Maximum drill depth range3.0000 to 4.0000
Maximum drill diameter in1
Number of drill inserts2
Shank diameter in1
Shank length2.2800
Shank typeWhistle Notch
Tool materialSteel
