Kyocera

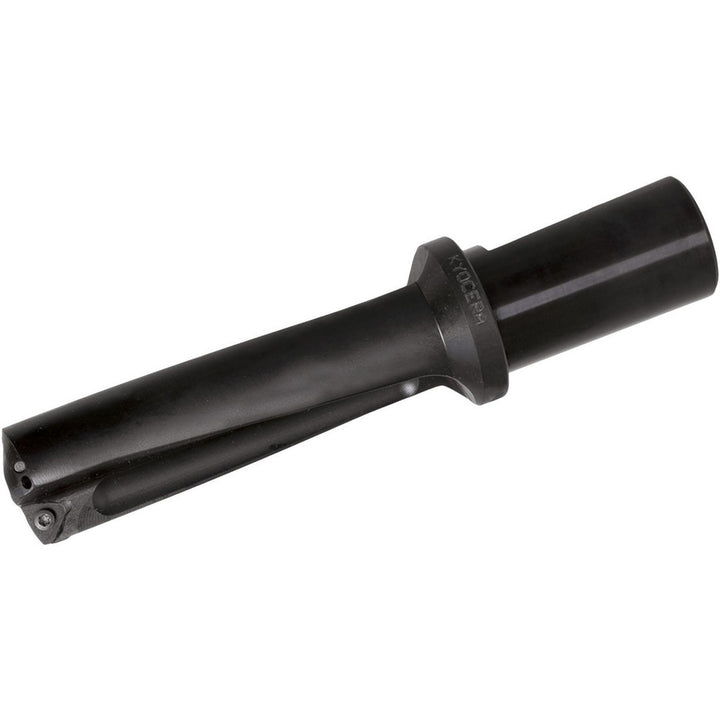

Indexable Drilling - Kyocera OTM86221
MFR# OTM86221Series Holeshot
$643.22List $797.23
Save 19%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kyocera OTM86221 indexable drilling. Series Holeshot.
Specifications
Body length5.0600
Compatible drill styleDR
Compatible insert styleWCMX
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio3xD
Insert compatibilityWCMX 06T308-M1A
Insert size0.0940 (Insert2); 0.1560 (Insert1)
Maximum drill depth4.1200
Maximum drill depth range4.0000 to 5.0000
Maximum drill diameter in1-3/8
Number of drill inserts2
Shank diameter in1-1/4
Shank length2.2800
Shank typeWhistle Notch
Tool materialSteel
