Kyocera

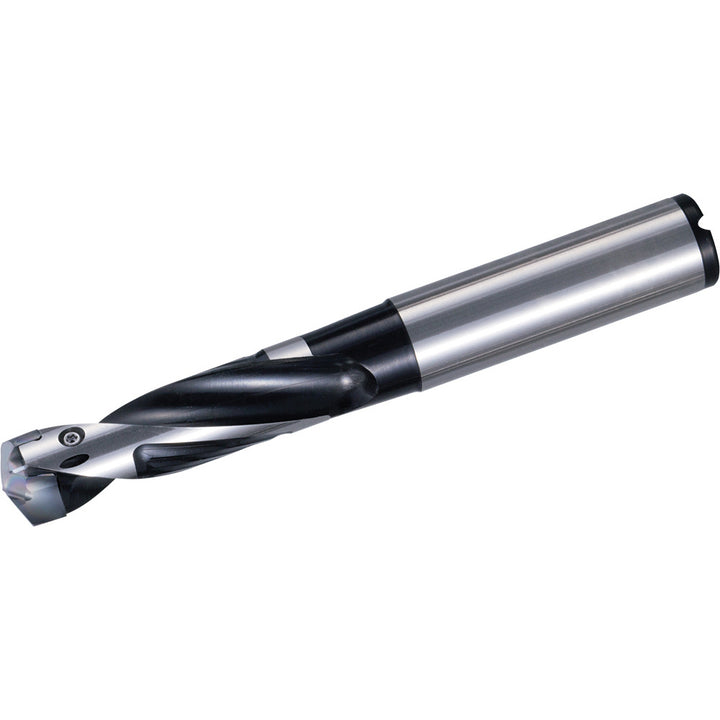

Indexable Drilling - Kyocera THD08080
MFR# THD08080Series Magic Drill DRA
$304.05List $370.30
Save 17%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kyocera THD08080 indexable drilling. Series Magic Drill DRA.
Specifications
Compatible insert styleDA
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio3xD
Flute length (mm)25.50
Insert seat size080
Maximum drill depth (mm)25.50
Maximum drill depth range (mm)0.00 to 40.00
Maximum drill diameter (mm)8.49
Minimum drill diameter (mm)7.94
Overall length (mm)79
Shank diameter (mm)10.00
Shank length (mm)40.00
Shank typeStraight-Cylindrical
Toolholder styleSS DRA
