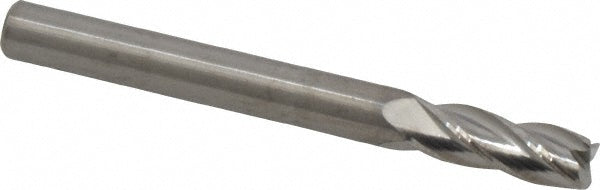

1/4" 4-Flute Solid Carbide Corner Radius End Mill - M.A. Ford. 11125001

MFR# 11125001Series 111

$43.91List $56.32 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/4

Flutes4

MaterialSolid Carbide

CoatingUncoated

Description

The M.A. Ford. 11125001 is a 1/4 4-flute Solid Carbide (Micrograin) corner radius end mill. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material. 3/4 length of cut, 2-1/2 overall length. Series 111.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishUncoated

Coolant throughNo

Corner radius in1/64

Corner radius tolerance+0.00120 to -0.00120 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withToolholder

Helix angle30

Helix styleMedium

Length of cut in3/4

Length typeRegular

Manufacturers catalog number11125001

Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material

Material gradeMicrograin

Material removal typeRoughing & Finishing

Maximum helix angle30

Mill diameter in1/4

Mill diameter tolerance+0.0000 to -0.0020 in

Minimum helix angle30

Number of flutes4

Overall length in2-1/2

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material

Reach length in3/4

Shank diameter in1/4

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
