1/4" 4-Flute High Speed Steel Square End Mill, TiCN - Cleveland C33619

Cleveland

1/4" 4-Flute High Speed Steel Square End Mill, TiCN - Cleveland C33619

MFR# C33619Series HG-4LL

$75.34List $94.94 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/4
Flutes4
MaterialHigh Speed Steel
CoatingTiCN

Description

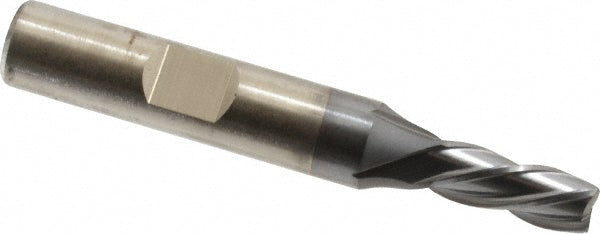

The Cleveland C33619 is a 1/4 4-flute High Speed Steel square end mill. 5/8 length of cut, 2-7/16 overall length. Series HG-4LL.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishTiCN
Cutting directionLeft Hand
End mill materialHigh Speed Steel
Extended reachNo
Flute directionLeft Hand
Flute typeSpiral
Helix angle30
Length of cut in5/8
Length of cut range0.6000 - 0.7000
Length typeRegular
Mill diameter in1/4
Number of flutes4
Overall length in2-7/16
Shank diameter in3/8
Variable helixNo
Variable indexNo
