Hertel

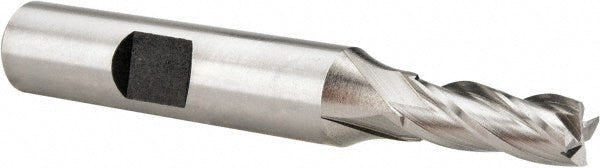

1/4" 4-Flute High Speed Steel Square End Mill - Hertel GG99914170
MFR# GG99914170
$14.37List $18.44
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/4
Flutes4
MaterialHigh Speed Steel
Description
The Hertel GG99914170 is a 1/4 4-flute High Speed Steel (M7) square end mill. 5/8 length of cut, 2-1/2 overall length.
Specifications
CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialHigh Speed Steel
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in5/8
Length of cut range0.6000 - 0.7000
Length typeRegular
Material gradeM7
Mill diameter in1/4
Number of flutes4
Overall length in2-1/2
Shank diameter in3/8
Variable helixNo
Variable indexNo
