Cleveland

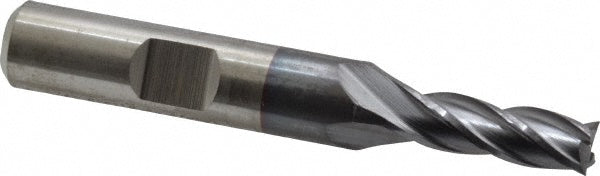

1/4" 4-Flute Cobalt Square End Mill, TiCN - Cleveland C32617

MFR# C32617Series HGC-4C

$31.05List $39.83 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/4

Flutes4

MaterialCobalt

CoatingTiCN

Description

The Cleveland C32617 is a 1/4 4-flute Cobalt (M42) square end mill. Suited for high temperature alloy, stainless steel, steel. 5/8 length of cut, 2-7/16 overall length. Series HGC-4C.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishTiCN

Cutting directionRight Hand

End mill materialCobalt

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in5/8

Length of cut range0.6000 - 0.7000

Length typeRegular

Material gradeM42

Mill diameter in1/4

Number of flutes4

Overall length in2-7/16

Primary workpiece materialHigh Temperature Alloy; Stainless Steel; Steel

Shank diameter in3/8

Shank typeStraight-Cylindrical; Weldon Flat

Variable helixNo

Variable indexNo
