M.A. Ford.

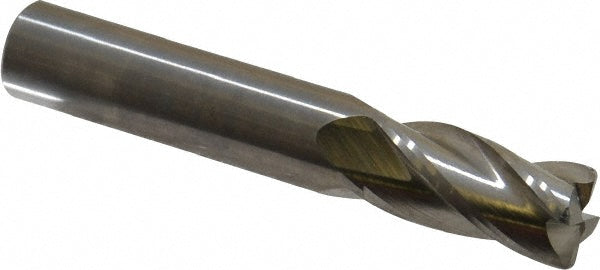

1/2" 4-Flute Solid Carbide Corner Radius End Mill - M.A. Ford. 11150004

MFR# 11150004Series 111

$123.78List $158.76 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/2

Flutes4

MaterialSolid Carbide

CoatingUncoated

Description

The M.A. Ford. 11150004 is a 1/2 4-flute Solid Carbide (Micrograin) corner radius end mill. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material. 1 length of cut, 3 overall length. Series 111.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishUncoated

Coolant throughNo

Corner radius0.0450

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withToolholder

Helix angle30

Helix styleMedium

Length of cut in1

Length typeRegular

Manufacturers catalog number11150004

Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material

Material gradeMicrograin

Material removal typeRoughing & Finishing

Maximum helix angle30

Mill diameter in1/2

Mill diameter tolerance+0.0000 to -0.0030 in

Minimum helix angle30

Number of flutes4

Overall length in3

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material

Reach length in1

Shank diameter in1/2

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
