M.A. Ford.

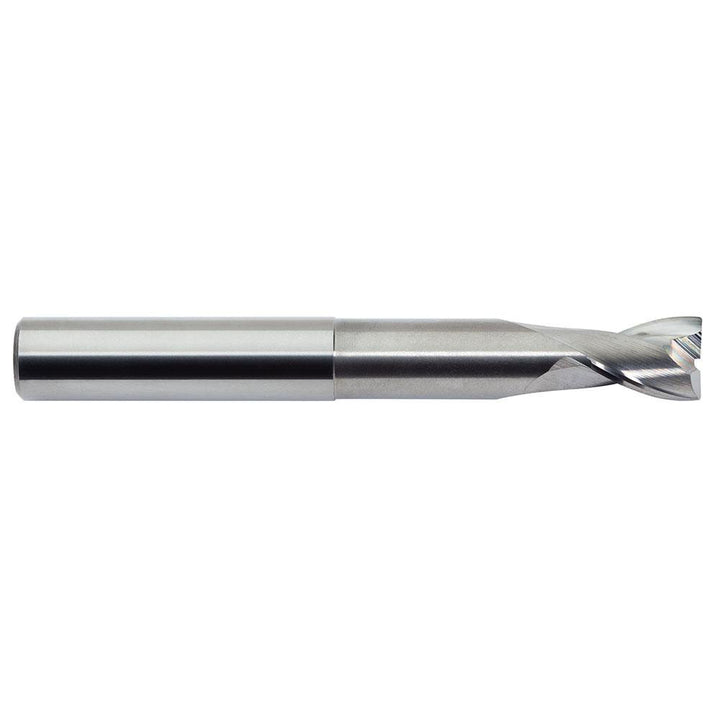

3/16" 2-Flute Solid Carbide Corner Radius End Mill - M.A. Ford. 13518751N

MFR# 13518751NSeries 135

$48.59List $62.32 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/16

Flutes2

MaterialSolid Carbide

CoatingUncoated

Description

The M.A. Ford. 13518751N is a 3/16 2-flute Solid Carbide (Micrograin) corner radius end mill. Suited for non-ferrous metal. 1/4 length of cut, 3 overall length. Series 135.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishUncoated

Coolant throughNo

Corner radius0.0080

Corner radius tolerance+0.0020 to -0.0020 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachYes

Flute directionRight Hand

Flute typeSpiral

For use withToolholder

Helix angle30

Helix styleMedium

Length of cut in1/4

Length typeRegular

Manufacturers catalog number13518751N

Material applicationNon-Ferrous Metal

Material gradeMicrograin

Material removal typeRoughing & Finishing

Maximum helix angle30

Mill diameter in3/16

Mill diameter tolerance+0.0000 to -0.0020 in

Minimum helix angle30

Neck diameter0.1875

Number of flutes2

Overall length in3

PitchCoarse

Primary workpiece materialNon-Ferrous Metal

Reach length in1-9/16

Shank diameter in3/16

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
